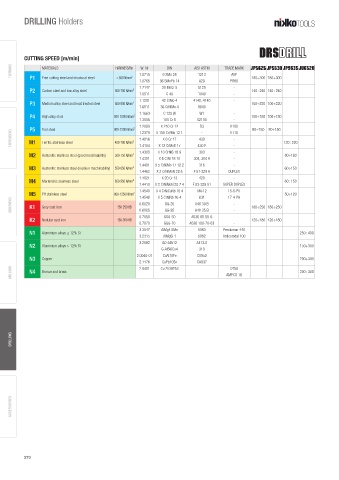

Page 272 - Nikko Tools - Update 2019

DRILLING Holders

DRSDRILL
CUTTING SPEED [m/min]
TURNING MATERIALS HARDNESS/Rm 1.0715 9 SMn 28 AISI-ASTM TRADE MARK JP5625JP5530JP9635JU6520
W.-Nr
DIN
1213
AVP
P1
< 500 N/mm²
Free cutting steel and structural steel
1.0765 36 SMnPb 14 A29 PR80 180÷300 180÷300
1.7147 20 MnCr 5 5120 -
P2 Carbon steel and low alloy steel 500-700 N/mm² 140÷240 140÷240
1.0511 C 40 1040 -
1.1201 42 CrMo 4 4142, 4140 -
P3 Medium alloy steel and heat treated steel 600-800 N/mm² 100÷220 100÷220
1.6511 36 CrNiMo 4 9840 -
1.1663 C 125 W W1 -
P4 High alloy steel 800-1000 N/mm² 100÷180 100÷180
1.3505 100 Cr 6 52100 -
1.2080 X 210 Cr 12 D3 K100 80÷150 80÷150
P5
Tool steel
900-1200 N/mm²
THREADING M1 Ferritic stainless steel 400-700 N/mm² 1.2379 X 155 CrVMo 12 1 430 F K110 120÷220
-
1.4016
-
430
X 6 Cr 17
1.4104
X 12 CrMoS 17
-
1.4305 X 10 CrNiS 18 9 303 -
M2 Austenitic stainless steel (good machinability) 500-750 N/mm² 80÷180
1.4301 X 6 CrNi 18 10 304, 304 H -
1.4401 X 5 CrNiMo 17 12 2 316 -
M3 Austenitic stainless steel (medium machinability) 550-850 N/mm² 60÷150
1.4462 X 2 CrNiMoN 22 5 F 51-329 A DUPLEX
1.4021 X 20 Cr 13 420 -
M4 Martensitic stainless steel 650-950 N/mm² 60÷150
1.4410 X 2 CrNiMoN 25 7 4 F 53-329 S1 SUPER DUPLEX
1.4540 X 4 CrNiCuNb 16 4 XM-12 15-5-PH
M5 PH stainless steel 800-1250 N/mm² 1.4542 X 5 CrNiNb 16 4 631 17-4-PH 50÷120
GROOVING K1 Grey cast iron 150-250 HB 0.6020 GG-20 A48 30 B - - 180÷250 180÷250
A48 35 B
0.6025
GG-25
0.7050 GGG-50 A536 80-55-6 -
K2 Nodular cast iron 150-350 HB 120÷180 120÷180
0.7070 GGG-70 A536 100-70-03 -
3.3547 AlMg4.5Mn 5083 Peraluman 440
N1 Aluminium alloys ≤ 12% Si 250÷400
3.2315 AlMgSi 1 6082 Anticorodal 100
3.2582 GD-AlSi12 A413.0
N2 Aluminium alloys > 12% Si 150÷300
G-AlSi6Cu4 319
2.0940-01 CuAl10Fe CA952
N3 Copper 200÷300
2.1176 CuPb10Sn CA937
MILLING N4 Bronze and brass 2.0401 Cu Zn39Pb3 AMPCO 18 200÷300
OT58
