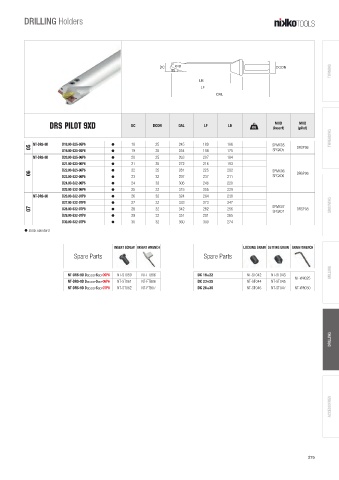

P. 277
DRILLING Holders
TURNING
DC DCON
LB
LF
OAL
DRS Pilot 9xD DC DCON OAL LF LB A (insert) (pilot)
MIID
MIID
THREADING
05 NT-DRS-9D D18.00-S25-05P6 h 18 25 245 189 166 SPMX05 DRSP06
D19.00-S25-05P6
SPGX05
198
175
h
25
254
19
NT-DRS-9D D20.00-S25-06P6 h 20 25 263 207 184
D21.00-S25-06P6 h 21 25 272 216 193
D22.00-S25-06P6 h 22 25 281 225 202 SPMX06
06 DRSP06
D23.00-S32-06P6 h 23 32 297 237 211 SPGX06
D24.00-S32-06P6 h 24 32 306 246 220
D25.00-S32-06P6 h 25 32 315 255 229
NT-DRS-9D D26.00-S32-07P8 h 26 32 324 264 238
D27.00-S32-07P8 h 27 32 333 273 247
07 D28.00-S32-07P8 h 28 32 342 282 256 SPMX07 DRSP08 GROOVING
SPGX07
D29.00-S32-07P8 h 29 32 351 291 265
D30.00-S32-07P8 h 30 32 360 300 274
h stock standard
INSERT SCREW INSERT WRENCH LOCKING GRAIN SETTING GRAIN GRAIN WRENCH
Spare Parts Spare Parts
NT-DRS-9D D.-S-05P6 NT-ST059 NT-FTB06 DC 18÷22 NT-ST042 NT-ST043 MILLING
NT-WR025
NT-DRS-9D D.-S-06P6 NT-ST061 NT-FTB06 DC 23÷25 NT-ST044 NT-ST045
NT-DRS-9D D.-S-07P8 NT-ST062 NT-FTB07 DC 26÷30 NT-ST046 NT-ST047 NT-WR030
DRILLING
ACCESSORIES
