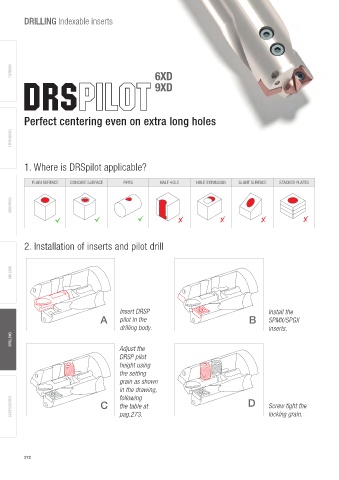

DRILLING Indexable inserts
TURNING 6XD
DRSPILOT 9XD
Perfect centering even on extra long holes
THREADING
1. Where is DRSpilot applicable?
PLAIN SURFACE CONCAVE SURFACE PIPES HALF HOLE HOLE EXPANSION SLANT SURFACE STACKED PLATES
GROOVING
2. Installation of inserts and pilot drill
MILLING
Insert DRSP Install the
A pilot in the B SPMX/SPGX
drilling body. inserts.
DRILLING
Adjust the
DRSP pilot
height using
the setting
grain as shown
in the drawing,
ACCESSORIES C following D Screw tight the
the table at
locking grain.
pag.273.
