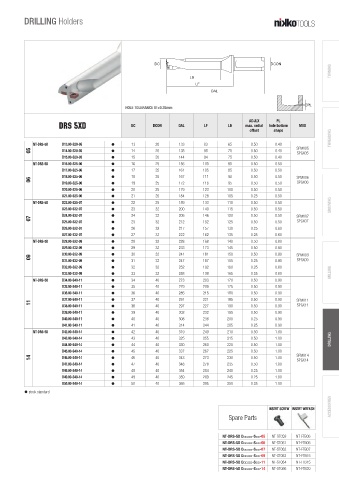

P. 271
DRILLING Holders
DC DCON
TURNING
LB
LF
OAL
PL
HOLE TOLERANCE 0/+0.35mm
ADJLX
PL
DRS 5xD DC DCON OAL LF LB max. radial hole bottom MIID
offset shape
THREADING
NT-DRS-5D D13.00-S20-05 h 13 20 133 83 65 0.50 0.40
05 D14.00-S20-05 h 14 20 138 88 70 0.50 0.40 SPMX05
SPGX05
D15.00-S20-05 h 15 20 144 94 75 0.50 0.40
NT-DRS-5D D16.00-S25-06 h 16 25 156 100 80 0.50 0.50
D17.00-S25-06 h 17 25 161 105 85 0.50 0.50
D18.00-S25-06 h 18 25 167 111 90 0.50 0.50 SPMX06
06 D19.00-S25-06 h 19 25 172 116 95 0.50 0.50 SPGX06
D20.00-S25-06 h 20 25 179 123 100 0.50 0.50
D21.00-S25-06 h 21 25 184 128 105 0.25 0.50
NT-DRS-5D D22.00-S25-07 h 22 25 189 133 110 0.50 0.50
D23.00-S32-07 h 23 32 200 140 115 0.50 0.50 GROOVING
D24.00-S32-07 h 24 32 206 146 120 0.50 0.50 SPMX07
07 D25.00-S32-07 h 25 32 212 152 125 0.50 0.50 SPGX07
D26.00-S32-07 h 26 32 217 157 130 0.25 0.60
D27.00-S32-07 h 27 32 222 162 135 0.25 0.60
NT-DRS-5D D28.00-S32-09 h 28 32 228 168 140 0.50 0.80
D29.00-S32-09 h 29 32 233 173 145 0.50 0.80
D30.00-S32-09 h 30 32 241 181 150 0.50 0.80 SPMX09
09 D31.00-S32-09 h 31 32 247 187 155 0.25 0.80 SPGX09
D32.00-S32-09 h 32 32 252 192 160 0.25 0.80
D33.00-S32-09 h 33 32 258 198 165 0.25 0.80 MILLING
NT-DRS-5D D34.00-S40-11 h 34 40 273 203 170 0.50 0.90
D35.00-S40-11 h 35 40 279 209 175 0.50 0.90
D36.00-S40-11 h 36 40 285 215 180 0.50 0.90
D37.00-S40-11 h 37 40 291 221 185 0.50 0.90 SPMX11
11 D38.00-S40-11 h 38 40 297 227 190 0.50 0.90 SPGX11
D39.00-S40-11 h 39 40 302 232 195 0.50 0.90
D40.00-S40-11 h 40 40 308 238 200 0.25 0.90
D41.00-S40-11 h 41 40 314 244 205 0.25 0.90
NT-DRS-5D D42.00-S40-14 h 42 40 319 249 210 0.50 1.00
D43.00-S40-14 h 43 40 325 255 215 0.50 1.00 DRILLING
D44.00-S40-14 h 44 40 330 260 220 0.50 1.00
D45.00-S40-14 h 45 40 337 267 225 0.50 1.00
14 D46.00-S40-14 h 46 40 343 273 230 0.50 1.00 SPMX14
SPGX14
D47.00-S40-14 h 47 40 348 278 235 0.50 1.00
D48.00-S40-14 h 48 40 354 284 240 0.25 1.00
D49.00-S40-14 h 49 40 359 289 245 0.25 1.00
D50.00-S40-14 h 50 40 365 295 250 0.25 1.00
h stock standard
ACCESSORIES
INSERT SCREW INSERT WRENCH
Spare Parts
NT-DRS-5D D.-S-05 NT-ST059 NT-FTB06
NT-DRS-5D D.-S-06 NT-ST061 NT-FTB06
NT-DRS-5D D.-S-07 NT-ST062 NT-FTB07
NT-DRS-5D D.-S-09 NT-ST063 NT-FTB15 269
NT-DRS-5D D.-S-11 NT-ST064 NT-FTB15
NT-DRS-5D D.-S-14 NT-ST066 NT-FTB20
