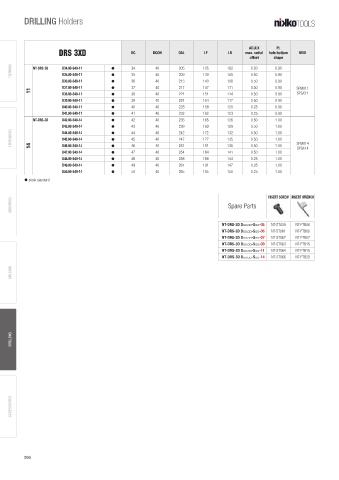

P. 268
DRILLING Holders
ADJLX PL
DRS 3xD DC DCON OAL LF LB max. radial hole bottom MIID
offset shape
TURNING NT-DRS-3D D34.00-S40-11 h 34 40 205 135 102 0.50 0.90
D35.00-S40-11
h
139
105
35
0.90
40
0.50
209
D36.00-S40-11 h 36 40 213 143 108 0.50 0.90
D37.00-S40-11 h 37 40 217 147 111 0.50 0.90 SPMX11
11
D38.00-S40-11 h 38 40 221 151 114 0.50 0.90 SPGX11
D39.00-S40-11 h 39 40 224 154 117 0.50 0.90
D40.00-S40-11 h 40 40 228 158 120 0.25 0.90
D41.00-S40-11 h 41 40 232 162 123 0.25 0.90
NT-DRS-3D D42.00-S40-14 h 42 40 235 165 126 0.50 1.00
D43.00-S40-14 h 43 40 239 169 129 0.50 1.00
THREADING D44.00-S40-14 h 44 40 242 172 132 0.50 1.00 SPMX14
D45.00-S40-14
h
0.50
45
247
177
40
1.00
135
14
D46.00-S40-14
1.00
251
40
181
138
46
0.50
D47.00-S40-14 h 47 40 254 184 141 0.50 1.00 SPGX14
h
D48.00-S40-14 h 48 40 258 188 144 0.25 1.00
D49.00-S40-14 h 49 40 261 191 147 0.25 1.00
D50.00-S40-14 h 50 40 265 195 150 0.25 1.00
h stock standard
INSERT SCREW INSERT WRENCH
GROOVING Spare Parts
NT-DRS-3D D.-S-05 NT-ST059 NT-FTB06
NT-DRS-3D D.-S-06 NT-ST061 NT-FTB06
NT-DRS-3D D.-S-07 NT-ST062 NT-FTB07
NT-DRS-3D D.-S-09 NT-ST063 NT-FTB15
NT-DRS-3D D.-S-11 NT-ST064 NT-FTB15
NT-DRS-3D D.-S-14 NT-ST066 NT-FTB20
MILLING
DRILLING
ACCESSORIES
