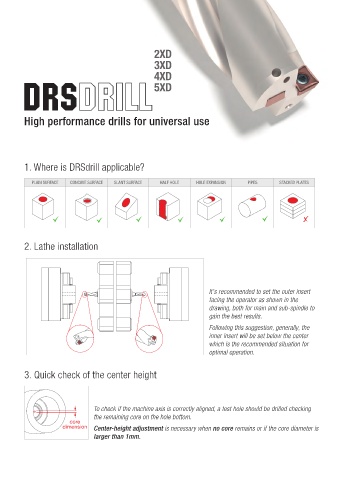

2XD

3XD
4XD
DRSDRILL 5XD

High performance drills for universal use

1. Where is DRSdrill applicable?

PLAIN SURFACE CONCAVE SURFACE SLANT SURFACE HALF HOLE HOLE EXPANSION PIPES STACKED PLATES

2. Lathe installation

It’s recommended to set the outer insert
facing the operator as shown in the
drawing, both for main and sub-spindle to
gain the best results.
Following this suggestion, generally, the
inner insert will be set below the center
which is the recommended situation for
optimal operation.

3. Quick check of the center height

To check if the machine axis is correctly aligned, a test hole should be drilled checking
the remaining core on the hole bottom.
core
dimension Center-height adjustment is necessary when no core remains or if the core diameter is
larger than 1mm.
