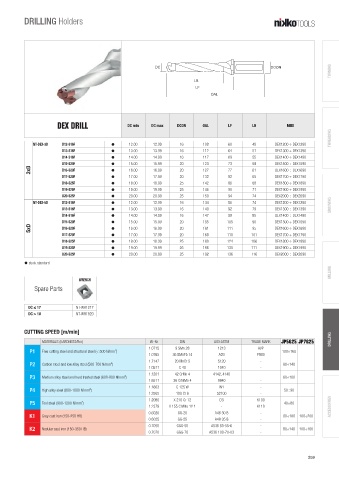

DRILLING Holders
TURNING
DC DCON
LB
LF
OAL
DEX DRILL DC min DC max DCON OAL LF LB MIID
THREADING
NT-DEX-3D D12-S16F h 12.00 12.99 16 108 60 48 DEX1200 ÷ DEX1290
D13-S16F h 13.00 13.99 16 112 64 51 DEX1300 ÷ DEX1390
D14-S16F h 14.00 14.99 16 117 69 55 DEX1400 ÷ DEX1490
D15-S20F h 15.00 15.99 20 123 73 58 DEX1500 ÷ DEX1590
3xD D16-S20F h 16.00 16.99 20 127 77 61 DEX1600 ÷ DEX1690
D17-S20F h 17.00 17.99 20 132 82 65 DEX1700 ÷ DEX1790
D18-S25F h 18.00 18.99 25 142 86 68 DEX1800 ÷ DEX1890
D19-S25F h 19.00 19.99 25 146 90 71 DEX1900 ÷ DEX1990
D20-S25F h 20.00 20.99 25 150 94 74 DEX2000 ÷ DEX2090
NT-DEX-5D D12-S16F h 12.00 12.99 16 134 86 74 DEX1200 ÷ DEX1290
D13-S16F h 13.00 13.99 16 140 92 79 DEX1300 ÷ DEX1390 GROOVING
D14-S16F h 14.00 14.99 16 147 99 85 DEX1400 ÷ DEX1490
D15-S20F h 15.00 15.99 20 155 105 90 DEX1500 ÷ DEX1590
5xD D16-S20F h 16.00 16.99 20 161 111 95 DEX1600 ÷ DEX1690
D17-S20F h 17.00 17.99 20 168 118 101 DEX1700 ÷ DEX1790
D18-S25F h 18.00 18.99 25 180 124 106 DEX1800 ÷ DEX1890
D19-S25F h 19.00 19.99 25 186 130 111 DEX1900 ÷ DEX1990
D20-S25F h 20.00 20.99 25 192 136 116 DEX2000 ÷ DEX2090
h stock standard
MILLING
WRENCH
Spare Parts
DC ≤ 17 NT-WR1217
DC > 18 NT-WR1820
CUTTING SPEED [m/min]
MATERIALS (HARDNESS/Rm) W.-Nr DIN AISI-ASTM TRADE MARK JP5625 JP7625 DRILLING
1.0715 9 SMn 28 1213 AVP
P1 Free cutting steel and structural steel (< 500 N/mm²) 100÷160
1.0765 36 SMnPb 14 A29 PR80
1.7147 20 MnCr 5 5120 -
P2 Carbon steel and low alloy steel (500-700 N/mm²) 80÷140
1.0511 C 40 1040 -
1.1201 42 CrMo 4 4142, 4140 -
P3 Medium alloy steel and heat treated steel (600-800 N/mm²) 60÷100
1.6511 36 CrNiMo 4 9840 -
1.1663 C 125 W W1 -
P4 High alloy steel (800-1000 N/mm²) 50÷90
1.3505 100 Cr 6 52100 -
1.2080 X 210 Cr 12 D3 K100
P5 Tool steel (900-1200 N/mm²) 40÷80
1.2379 X 155 CrVMo 12 1 - K110 ACCESSORIES
0.6020 GG-20 A48 30 B -
K1 Grey cast iron (150-250 HB) 80÷180 100÷200
0.6025 GG-25 A48 35 B -
0.7050 GGG-50 A536 80-55-6 -
K2 Nodular cast iron (150-350 HB) 80÷140 100÷160
0.7070 GGG-70 A536 100-70-03 -
