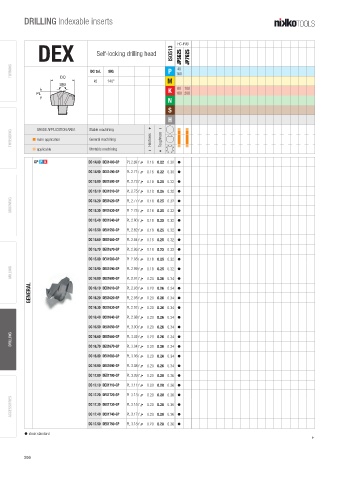

P. 258
DRILLING Indexable inserts
DEX Self-locking drilling head ISO513 HC-PVD JP7625
JP5625
TURNING DC tol. SIG P 160
40
k6 140° M
K 180 200
80 100
N
S
H
GRADE APPLICATION AREA
THREADING d main application Stable machining | Hardness + + Toughness | d d
d
d
d
d
d
d
General machining
d
d
d applicable Unstable machining d d
GP P K DC 14.80 DEX1480-GP PL 2.69 f n£ 0.16 0.22 0.30 h
DC 14.90 DEX1490-GP PL 2.71 f n£ 0.16 0.22 0.30 h
DC 15.00 DEX1500-GP PL 2.73 f n£ 0.18 0.25 0.32 h
DC 15.10 DEX1510-GP PL 2.75 f n£ 0.18 0.25 0.32 h
GROOVING DC 15.20 DEX1520-GP PL 2.77 f n£ 0.18 0.25 0.32 h
DC 15.30 DEX1530-GP
PL 2.78 f n£ 0.18 0.25 0.32 h
DC 15.40 DEX1540-GP PL 2.80 f n£ 0.18 0.25 0.32 h
DC 15.50 DEX1550-GP PL 2.82 f n£ 0.18 0.25 0.32 h
DC 15.60 DEX1560-GP PL 2.84 f n£ 0.18 0.25 0.32 h
DC 15.70 DEX1570-GP PL 2.86 f n£ 0.18 0.25 0.32 h
DC 15.80 DEX1580-GP PL 2.88 f n£ 0.18 0.25 0.32 h
MILLING DC 15.90 DEX1590-GP PL 2.89 f n£ 0.18 0.25 0.32 h
DC 16.00 DEX1600-GP
PL 2.91 f n£ 0.20 0.26 0.34 h
GENERAL DC 16.10 DEX1610-GP PL 2.93 f n£ 0.20 0.26 0.34 h
DC 16.20 DEX1620-GP
PL 2.95 f n£ 0.20 0.26 0.34 h
DC 16.30 DEX1630-GP PL 2.97 f n£ 0.20 0.26 0.34 h
DC 16.40 DEX1640-GP PL 2.98 f n£ 0.20 0.26 0.34 h
DC 16.50 DEX1650-GP PL 3.00 f n£ 0.20 0.26 0.34 h
DRILLING DC 16.60 DEX1660-GP PL 3.02 f n£ 0.20 0.26 0.34 h
DC 16.70 DEX1670-GP
PL 3.04 f n£ 0.20 0.26 0.34 h
DC 16.80 DEX1680-GP PL 3.06 f n£ 0.20 0.26 0.34 h
DC 16.90 DEX1690-GP PL 3.08 f n£ 0.20 0.26 0.34 h
DC 17.00 DEX1700-GP PL 3.09 f n£ 0.20 0.28 0.36 h
DC 17.10 DEX1710-GP PL 3.11 f n£ 0.20 0.28 0.36 h
DC 17.20 DEX1720-GP PL 3.13 f n£ 0.20 0.28 0.36 h
ACCESSORIES DC 17.30 DEX1730-GP PL 3.15 f n£ 0.20 0.28 0.36 h
DC 17.40 DEX1740-GP
PL 3.17 f n£ 0.20 0.28 0.36 h
DC 17.50 DEX1750-GP PL 3.18 f n£ 0.20 0.28 0.36 h
h stock standard
£
