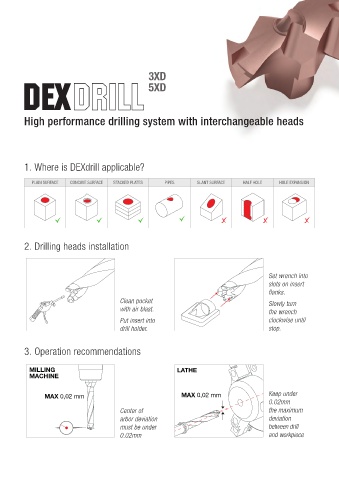

                     High performance drilling system with interchangeable heads








                     1. Where is DEXdrill applicable?

                       PLAIN SURFACE  CONCAVE SURFACE  STACKED PLATES  PIPES      SLANT SURFACE   HALF HOLE   HOLE EXPANSION












                     2. Drilling heads installation





                                                                                                           Set wrench into
                                                                                                           slots on insert
                                                                                                           fl anks.
                                                      Clean pocket
                                                                                                          Slowly turn
                                                      with air blast.
                                                                                                           the wrench
                                                       Put insert into                                     clockwise until
                                                      drill holder.                                        stop.



                     3. Operation recommendations


                       MILLING                                             LATHE
                       MACHINE



                            MAX 0,02 mm                                     MAX 0,02 mm                   Keep under
                                                                                                           0.02mm
                                                      Center of                                           the maximum
                                                      arbor deviation                                      deviation
                                                      must be under                                        between drill
                                                      0.02mm                                               and workpiece
