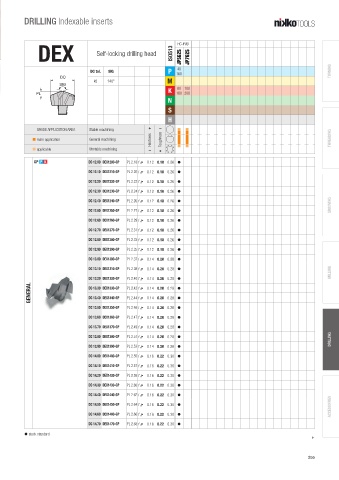

P. 257
DRILLING Indexable inserts
DEX Self-locking drilling head ISO513 HC-PVD JP7625
JP5625
40
DC tol. SIG P 160 TURNING
M
k6 140°
K 180 200
80 100
N
S
H
GRADE APPLICATION AREA Stable machining d d
d
d
d
d
d main application General machining | Hardness + + Toughness | d d THREADING
d
d
d applicable Unstable machining d d
GP P K DC 12.00 DEX1200-GP PL 2.18 f n£ 0.12 0.18 0.26 h
DC 12.10 DEX1210-GP PL 2.20 f n£ 0.12 0.18 0.26 h
DC 12.20 DEX1220-GP PL 2.22 f n£ 0.12 0.18 0.26 h
DC 12.30 DEX1230-GP PL 2.24 f n£ 0.12 0.18 0.26 h
DC 12.40 DEX1240-GP PL 2.26 f n£ 0.12 0.18 0.26 h
DC 12.50 DEX1250-GP PL 2.27 f n£ 0.12 0.18 0.26 h GROOVING
DC 12.60 DEX1260-GP PL 2.29 f n£ 0.12 0.18 0.26 h
DC 12.70 DEX1270-GP PL 2.31 f n£ 0.12 0.18 0.26 h
DC 12.80 DEX1280-GP PL 2.33 f n£ 0.12 0.18 0.26 h
DC 12.90 DEX1290-GP PL 2.35 f n£ 0.12 0.18 0.26 h
DC 13.00 DEX1300-GP PL 2.37 f n£ 0.14 0.20 0.28 h
DC 13.10 DEX1310-GP PL 2.38 f n£ 0.14 0.20 0.28 h MILLING
DC 13.20 DEX1320-GP PL 2.40 f n£ 0.14 0.20 0.28 h
GENERAL DC 13.30 DEX1330-GP PL 2.42 f n£ 0.14 0.20 0.28 h
DC 13.40 DEX1340-GP
PL 2.44 f n£ 0.14 0.20 0.28 h
DC 13.50 DEX1350-GP PL 2.46 f n£ 0.14 0.20 0.28 h
DC 13.60 DEX1360-GP PL 2.47 f n£ 0.14 0.20 0.28 h
DC 13.70 DEX1370-GP PL 2.49 f n£ 0.14 0.20 0.28 h
DRILLING
DC 13.80 DEX1380-GP PL 2.51 f n£ 0.14 0.20 0.28 h
DC 13.90 DEX1390-GP PL 2.53 f n£ 0.14 0.20 0.28 h
DC 14.00 DEX1400-GP PL 2.55 f n£ 0.16 0.22 0.30 h
DC 14.10 DEX1410-GP PL 2.57 f n£ 0.16 0.22 0.30 h
DC 14.20 DEX1420-GP PL 2.58 f n£ 0.16 0.22 0.30 h
DC 14.30 DEX1430-GP PL 2.60 f n£ 0.16 0.22 0.30 h
DC 14.40 DEX1440-GP PL 2.62 f n£ 0.16 0.22 0.30 h
ACCESSORIES
DC 14.50 DEX1450-GP PL 2.64 f n£ 0.16 0.22 0.30 h
DC 14.60 DEX1460-GP PL 2.66 f n£ 0.16 0.22 0.30 h
DC 14.70 DEX1470-GP PL 2.68 f n£ 0.16 0.22 0.30 h
h stock standard
£
