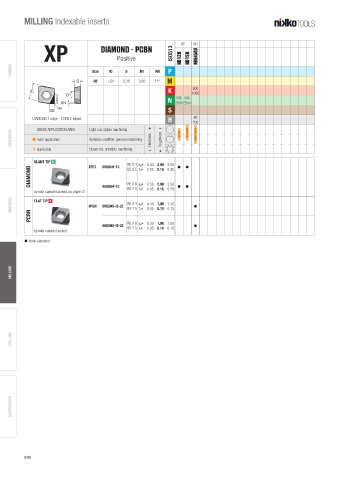

MILLING Indexable inserts
XP DIAMOND - PCBN ISO513 DP ND150 BH NBH450U
ND120
Positive
TURNING Size IC S D1 AN P
08 7.91 2.38 3.60 11° M
K 1000
600
5mm N 2000 2500
500 500
B S
H 200
DIAMOND 1 edge - PCBN 2 edges 80
d d
Bd
d
d
Light cut, stable machining
GRADE APPLICATION AREA
THREADING d main application Variable condition, general machining | Hardness + + Toughness | d d d
d
d
d
d
Ad
Ad
d
d applicable Heavy cut, unstable machining
SLANT TIP N XPGT 080204F-1C RE 0.4 a p£ 0.50 2.00 3.50 h h
DIAMOND BS 2.5 f z£ 0.05 0.15 0.25
RE 0.8 a p£ 0.50 2.00 3.50
080208F-1C
BS 2.5 f z£ 0.05 0.15 0.25 h h
tip with carbide backed, tip angle: 3°
GROOVING FLAT TIP K XPGW 080204S-UE-2C RE 0.4 a p£ 0.50 1.00 1.50 h
BS 2.5 f z£ 0.05 0.10 0.15
PCBN
080208S-UE-2C RE 0.8 a p£ 0.50 1.00 1.50 h
BS 2.5 f z£ 0.05 0.10 0.15
tip with carbide backed
h stock standard
