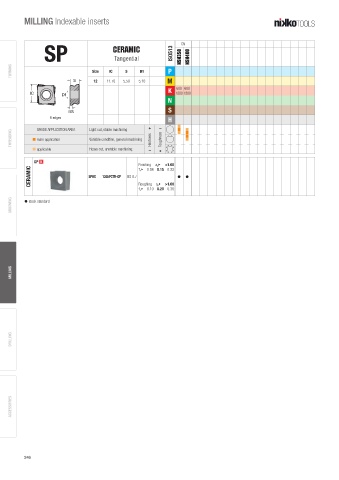

P. 248
MILLING Indexable inserts
SP CERAMIC ISO513 CN NSN400
NSN350
Tangential
TURNING Size IC S D1 P
12 11.70 5.50 5.10 M
K 1200 1200
600 600
N
S
H
8 edges
d d
d
Light cut, stable machining
GRADE APPLICATION AREA
THREADING d main application Variable condition, general machining | Hardness + + Toughness | d d
d
d
d applicable Heavy cut, unstable machining
GP K
Finishing a p£ <1.00
CERAMIC SPHX 1205PCTR-GP BS 0.7 h h
f z£ 0.08 0.15 0.22
Roughing a p£ >1.00
f z£ 0.10 0.20 0.30
GROOVING h stock standard
