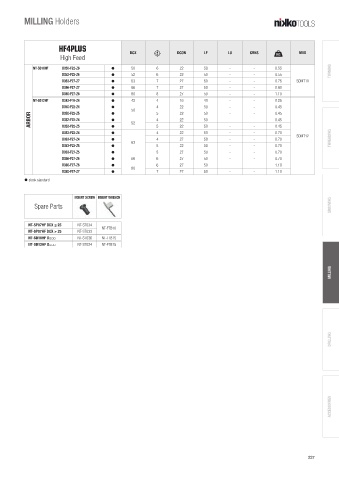

MILLING Holders

HF4Plus
DCX S DCON LF LU CRKS A MIID
High Feed

NT-SD10HF D050-F22-Z6 h 50 6 22 50 - - 0.55 TURNING
D052-F22-Z6 h 52 6 22 50 - - 0.55
D063-F27-Z7 h 63 7 27 50 - - 0.75 SDMT10
D066-F27-Z7 h 66 7 27 50 - - 0.80
D080-F27-Z8 h 80 8 27 50 - - 1.10
NT-SD12HF D042-F16-Z4 h 42 4 16 40 - - 0.25
D050-F22-Z4 h 4 22 50 - - 0.45
50 5 22 50 - - 0.45
D050-F22-Z5
h
ARBOR D052-F22-Z4 h 52 4 5 22 50 - - - - 0.45
D052-F22-Z5
0.45
22
h
50
D063-F22-Z4 h 4 22 50 - - 0.70
SDMT12
D063-F27-Z4 h 4 27 50 - - 0.70 THREADING
63
D063-F22-Z5 h 5 22 50 - - 0.70
D063-F27-Z5 h 5 27 50 - - 0.70
D066-F27-Z6 h 66 6 27 50 - - 0.70
D080-F27-Z6 h 6 27 50 - - 1.10
80
D080-F27-Z7 h 7 27 50 - - 1.10
h stock standard
INSERT SCREW INSERT WRENCH
GROOVING
Spare Parts

NT-SP07HF DCX ≤ 25 NT-ST034
NT-FTB10
NT-SP07HF DCX > 25 NT-ST033
NT-SD10HF D NT-ST036 NT-FTB15
NT-SD12HF D NT-ST024 NT-FTB15

MILLING

DRILLING

ACCESSORIES
