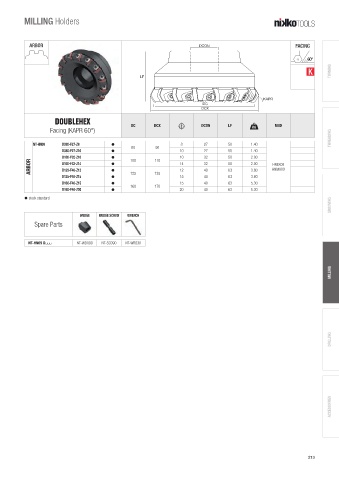

MILLING Holders
ARBOR DCON FACING
60°
PM K TURNING
LF
NS H
KAPR
DC
DCX
DoubleHEX
DC DCX S DCON LF A MIID
Facing (KAPR 60°)
NT-HN09 D080-F27-Z8 h 8 27 50 1.40 THREADING
80 90
D080-F27-Z10 h 10 27 50 1.40
D100-F32-Z10 h 100 110 10 32 50 2.00
ARBOR D100-F32-Z14 h 14 32 50 2.00 HNEX09
D125-F40-Z12
HNMX09
12
63
3.80
40
h
D125-F40-Z15 h 125 135 15 40 63 3.80
D160-F40-Z15 h 15 40 63 5.30
160 170
D160-F40-Z20 h 20 40 63 5.30
h stock standard
GROOVING
WEDGE WEDGE SCREW WRENCH
Spare Parts
NT-HN09 D NT-WD090 NT-SC090 NT-WR030
MILLING
