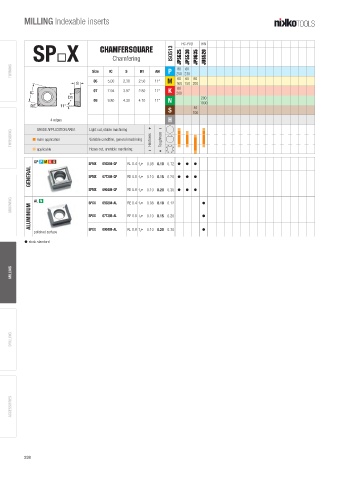

MILLING Indexable inserts

SPX CHAMFERSQUARE ISO513 JP5625 HC-PVD JP9635 HW JU6520
JP5530
Chamfering
TURNING Size IC S D1 AN P 250 230
80 60
60 60 60
05 5.00 2.38 2.50 11° M 160 150 200
80
07 7.94 3.97 2.80 11° K 200
200
09 9.80 4.30 4.10 11° N 1000
S 100
40
H
4 edges
GRADE APPLICATION AREA
THREADING d main application Light cut, stable machining | Hardness + + Toughness | d d d d
d
d
d
d
d
d
d
d
d
Variable condition, general machining
d
d
d
d
d
d applicable Heavy cut, unstable machining d d d d
d
GP P M K S SPMX 050204-GP RE 0.4 f z£ 0.08 0.10 0.12 h h h
GENERAL SPMX 07T308-GP RE 0.8 f z£ 0.10 0.15 0.20 h h h
SPMX 090408-GP RE 0.8 f z£ 0.10 0.20 0.30 h h h
GROOVING SPGX 050204-AL RE 0.4 f z£ 0.08 0.10 0.12 h
ALUMINIUM AL N SPGX 07T308-AL RE 0.8 f z£ 0.10 0.15 0.20 h
polished surface SPGX 090408-AL RE 0.8 f z£ 0.10 0.20 0.30 h
h stock standard
