P. 223
MILLING Holders
ARBOR DCON FACING
43°
INTERNAL P M K TURNING
COOLANT
LF
NS H
KAPR
DC
DCX

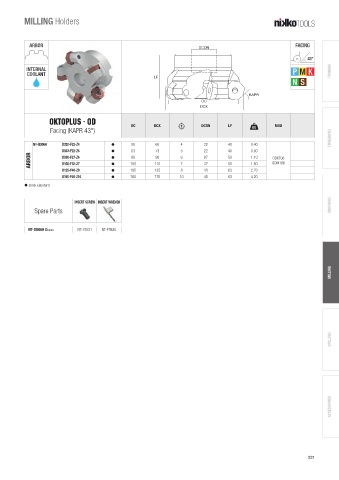

OktoPlus - OD
DC DCX S DCON LF A MIID
Facing (KAPR 43°)
THREADING
NT-OD06H D050-F22-Z4 h 50 60 4 22 40 0.40
D063-F22-Z5 h 63 73 5 22 40 0.60
ARBOR D080-F27-Z6 h 100 110 6 7 27 50 1.10 ODKT06
80
90
D100-F32-Z7
ODMT06
1.60
50
32
h
D125-F40-Z8 h 125 135 8 40 63 2.70
D160-F40-Z10 h 160 170 10 40 63 4.20
h stock standard
INSERT SCREW INSERT WRENCH GROOVING
Spare Parts
NT-OD06H D NT-ST021 NT-FTB20
MILLING
DRILLING
ACCESSORIES
